EM-Tec XT35 SEM stage travel extender strip for FEI/Philips 50x50mm stage, pin/M4

Description

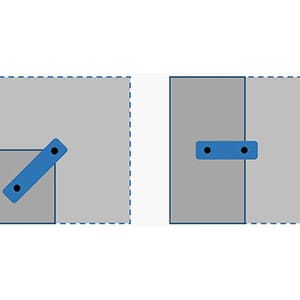

With the EM-Tec XT extender strips, sample area coverage can be increased to 100x100mm for SEMs with smaller SEM sample stages. The EM-Tec XT extender strip off-sets the large sample holder (EM-Tec XL100 multi holder). This enables coverage of a larger sample area by scanning half the area of the EM-Tec XL100 holder and than rotating it by 180 degrees to enable scanning the other half.
Most SEM chambers are relatively large and can hold samples up 150x150mm or more. Extending the sample area up to 100x100mm with the EM-Tec XL holder should be possible on most SEMs with a large chamber. Most SEM manufacturers offer a choice of SEM sample stages (smaller and larger) for the same SEM chamber. Please check any limitations on your SEM before using the EM-Tec XT extender strips.

The available EM-Tec XT SEM stage travel extender strips include:

• XT35 for FEI / Philips stages with a 50x50mm travel range quadruples the sample area to 100x100mm
• XT23 for Tescan stages with a 80x60mm travel range increases the sample area to 100x100mm
• XT25 for Hitachi stages with a 100x50mm travel range doubles the sample area to 100x100mm
• XT29 for JEOL stages with a 70x50mm travel range doubles the sample area to 100x100mm
• XT25 for Pemtron stages a with 70x60mm increases the sample area to 100x100mm
