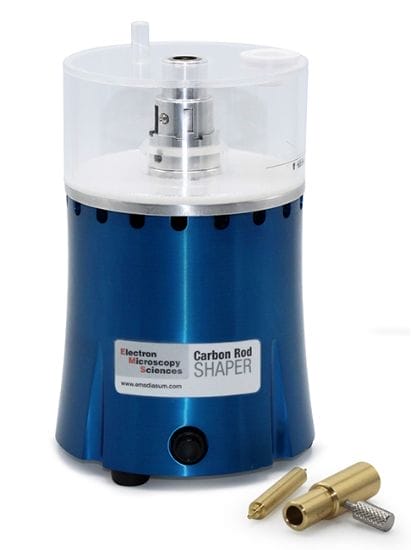

Carbon Rod Shaper

Easy single- and double-step shaping

The Carbon Rod Shaper is an ergonomic and space-saving electric carbon and graphite rod sharpener that provides easy, consistent, and efficient rod shaping for high-capacity labs. Its cutting head consists of two tungsten carbide blades and a top guide bearing. To use, fit the carbon rod of your choice into the holder and simply insert into the top guide bearing to produce precisely cut tips. Carbon dust is automatically removed by vortex into an internal dust collector, which can then be easily removed for cleaning

REF: D70305 Categories: ,

Available Options:

Thumbnail SKU Description Unit Quantity
70305-33 70305-33

Replacement Dust Collection Container

 		each
70305-32 70305-32

Additional Cutting Head Assembly

 		each
70305-31 70305-31

Additional Carbon Rod Holder for 3/16″ Rods

 		each
70305-30 70305-30

1/8″ Blade Setting Gauge (Single Step)

 		each
70305-29 70305-29

Replacement 1/8″ Rod Holder

 		each
70305-28 70305-28

1/4″ Blade Setting Gauge for Single or Double Step

 		each
70305-27 70305-27

Replacement 1/4″ Rod Holder

 		each
70305-26 70305-26

EMS Carbon Rod Shaper, with 1/8″ Rod Holder

 		each
70305-25 70305-25

Carbon Rod Shaper, with 1/4″ Rod Holder

 		each
70305-34 70305-34

Replacement Cutting Blades

 		2 pack

Description

Features

  • For use with 1/4″, 1/8″ and 3/16″ carbon rods
  • Internal dust collection
  • Trouble-free cutting blade adjustment
  • UL® Listed and CE Certified power supply

Specifications

Carbon Rod Sizes (nominal) 1/4″, 1/8″, 3/16″
Shaped Steps Single- or double-step
Cutter Speed 2350 RPM
Cutting Blades Dual Tungsten Carbide (4 cutting edges on each blade
Height 6 5/8″ (168 mm)
Diameter 0.5″ (114 mm)
Weight 4.6 lbs (2.07 kg)
Collector Capacity 2 fluid oz. (56 ml)
Humidity Range 8-90%
Power Requirements 100-240V, 47-63Hz
Power Rating 1.2A@115V or 0.6A@230V

Ordering Information

The EMS Carbon Rod Shaper with 1/4″ rod holder (70305-25) includes:

  • 1/4″ carbon rod holder
  • Blade-setting gauge for single 1 mm diameter step or double-steps with 1.65 mm and 3.8 mm diameters.

The EMS Carbon Rod Shaper with 1/8″ rod holder (70305-26) includes:

  • 1/8″ rod holder
  • Blade-setting gauge for single-step 1 mm or 1.2 mm diameter tip carbon rods.

Purchase item 70305-31 to shape 3/16″ Carbon Rods.

Pack: Each
