EM-Tec F12Z compact FIB grid holder for up to 2 FIB grids, short Zeiss pin

Description

The EM-Tec FIB grid holders are designed to hold FIB grids and provide easy access to the posts on the FIB grids to attach the milled FIB lift-out lamellae. The FIB grid holders can be used in the FIB/SEM systems but also for safe storage of the FIB grids with attached lamellae. The EM-Tec FIB grid and sample holders are compact holders which hold the FIB grids directly aside a standard SEM pin stub with a sample. The lift-out lamellas only need to be moved over a short distance to attach them to the FIB grids. The EM-Tec FIB grid holders are all precision machined from vacuum grade aluminium.

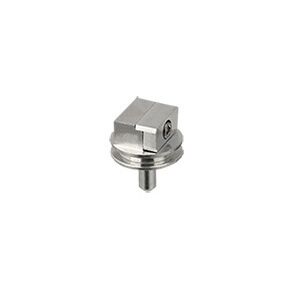

EM-Tec F12Z is a basic yet practical FIB grid holder with pin for 2 FIB grids. Based on the standard Ø12.7mm pin stub with the short Zeiss pin, it is compact and useful for storing valuable FIB samples. The 10mm wide vise clamp includes a ledge for easy positioning of the FIB grids.
