Description
A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny
side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300.

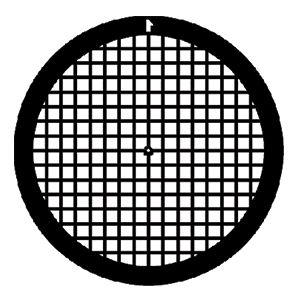

Gilder Grids Standard Square Mesh
3.05mm diameter, 0.7 mil (18µm) thickness
Material: Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP), Molybdnum (Mo)
– A thickened version of the standard, G200TH with an assymetric center. A mark on the rim allows for precise orientation of the grids.
– A combination of thin and thick bar grids, with a mark on the rim for orientation.
– The handle is designed for ease of handling and is easily removed if necessary. To remove the handle, just bend it over on a 90 degree angle.
| Mesh | Cat# | Packed | Pitch (µm) | Hole (µm) | Bar (µm) |
| 50 | DG50-Cu | 100/vial | 500 | 420 | 80 |
| DG50-Ni | 100/vial | 500 | 420 | 80 | |
| DG50-Au | 50/vial | 500 | 420 | 80 | |
| 75 | DG75-Cu | 100/vial | 340 | 285 | 55 |
| DG75-Ni | 100/vial | 340 | 285 | 55 | |
| DG75-Au | 50/vial | 340 | 280 | 60 | |
| 100 | DG100-Cu | 100/vial | 250 | 205 | 45 |
| DG100-Ni | 100/vial | 250 | 205 | 45 | |
| DG100-CP | 100/vial | 250 | 205 | 45 | |
| DG100-Mo | 25/vial | 250 | 205 | 45 | |
| DG100-Au | 50/vial | 250 | 200 | 50 | |
| 150 | DG150-Cu | 100/vial | 165 | 125 | 40 |
| DG150-Ni | 100/vial | 165 | 125 | 40 | |
| DG150-CP | 100/vial | 165 | 125 | 40 | |
| DG150-Au | 50/vial | 165 | 125 | 40 | |
| 175 | DG175-Cu | 100/vial | 145 | 108 | 37 |
| DG175-Ni | 100/vial | 145 | 108 | 37 | |
| DG175-Au | 50/vial | 145 | 108 | 37 | |
| 200 | DG200-Cu | 100/vial | 125 | 90 | 35 |
| DG200-Ni | 100/vial | 125 | 90 | 35 | |
| DG200-CP | 100/vial | 125 | 90 | 35 | |
| DG200-Au | 50/vial | 125 | 90 | 35 | |
| DG200-Mo | 25/vial | 125 | 90 | 35 | |
| DG200TH-Cu¹ | 100/vial | 125 | 85 | 40 | |
| DG200TH-Ni¹ | 100/vial | 125 | 85 | 40 | |
| DG200TT-Cu² | 100/vial | 125 | 95 | 35-25 | |
| DG200TT-Ni² | 100/vial | 125 | 95 | 35-25 | |
| DG200T-Cu³ | 100/vial | 125 | 85 | 40 | |
| DG200T-Ni³ | 100/vial | 125 | 85 | 40 | |
| 250 | DG250-Cu | 100/vial | 100 | 70 | 30 |
| DG250-Ni | 100/vial | 100 | 70 | 30 | |
| DG250-Au | 50/vial | 100 | 70 | 30 | |
| 300 | DG300-Cu | 100/vial | 83 | 58 | 25 |
| DG300-Ni | 100/vial | 83 | 58 | 25 | |
| DG300-CP | 100/vial | 83 | 58 | 25 | |
| DG300-Au | 50/vial | 83 | 58 | 25 | |
| 400 | DG400-Cu | 100/vial | 62 | 37 | 25 |
| DG400-Ni | 100/vial | 62 | 37 | 25 | |
| DG400-CP | 100/vial | 62 | 37 | 25 | |
| DG400-Au | 50/vial | 62 | 37 | 25 |
La liste est non exhaustive.
N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.
