each
Available for SEM and LM |
|
1/vial |
|
A holey carbon film is shadowed with gold and graphitized carbon particles are deposited on… Show more (+) A holey carbon film is shadowed with gold and graphitized carbon particles are deposited on a 3.05mm grid. These particles viewed over the holes may be used for assessment of factors limiting the microscope performance. The evaporated gold forms small polycrystalline islands and within these islands lattice fringes can be resolved. Also use this specimen for the measurement of contamination rates in the EM by noting the deposition rate of carbon within the holes found in the gold film. Show less (-) |
|

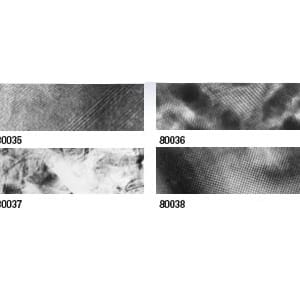

Plane Spacing 0.9nm and 0.45nm – Asbestos Crocidolite. |
|
each
Technical Data Sheet : Evaporated Aluminum On 3mm Grid |
|

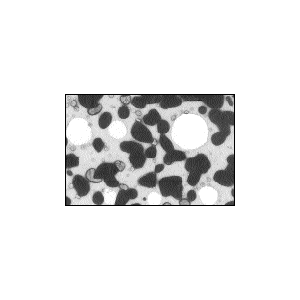

Evaporated Pt/Ir on Holey carbon film. Holey carbon film support provides holes for ease of… Show more (+) Evaporated Pt/Ir on Holey carbon film. Holey carbon film support provides holes for ease of focus and astigmatism correction. The dots of evaporated Pt/Ir provide dense particles for resolution checks through the particle seperation test.
Technical Data Sheet: Evaporated Platinum Iridium in Holey Carbon Film for Point Separation Resolution Test
1/vial Show less (-) |
|
each
Technical Data Sheet : Diffraction Standard Evaporated Thallous Chloride on 3mm Grid |
