All products TEM Windows - Delta Microscopies

Showing all 41 results


	Silicon Nitride 20 nm thick MICROPOROUS (Single 500 micron window) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS… Show more (+) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS DESCRIPTION Silicon Nitride (SiN) Microporous TEM Windows 2 micron pores on 1:1 pitch in Low-Stress Silicon Nitride – 100 micron thick frame, fits 3 mm sample holders – 20 nm thick Silicon Nitride film – (1) 500 x 500 […] Show less (-)

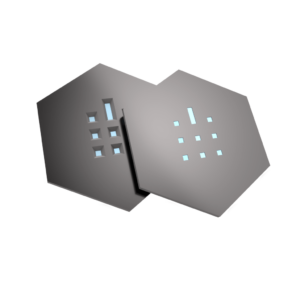

	Silicon Nitride 20 nm thick TEM Windows ( 9 Windows) Material: nonporous silicon nitride \| Thickness: 20 nm \| Window size: (8) 100x100 µm +… Show more (+) Material: nonporous silicon nitride \| Thickness: 20 nm \| Window size: (8) 100x100 µm + (1) 100x350 µm \| 2.9 mm hexagonal + 0.1 mm thick Show less (-)
	Silicon Nitride 20 nm thick TEM Windows ( Single 500 micron Window) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS… Show more (+) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS DESCRIPTION Silicon Nitride (SiN) TEM Windows Low-Stress Silicon Nitride – 100 micron thick frame, fits 3 mm sample holders – 20 nm thick Silicon Nitride film – Dimension: (1) 500 x 500 micron window – Non-Porous Nine window grids […] Show less (-)
	Silicon Nitride 5 nm thick TEM Windows (2 slots) – conductive for TEAM SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS… Show more (+) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS DESCRIPTION Silicon Nitride (SiN) TEM Windows for TEAM Low-Stress Silicon Nitride (NOW MORE CONDUCTIVE) – 100 micron thick frame – fits the sample holder of the TEAMi Microscope. – 5 nm thick Silicon Nitride film – (2) 50 x […] Show less (-)
	Silicon Nitride 50 nm thick MICROPOROUS (Single 500 micron window) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS… Show more (+) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS DESCRIPTION Silicon Nitride (SiN) Microporous TEM Windows 2 micron pores on 1:1 pitch in Low-Stress Silicon Nitride – 100 micron thick frame, fits 3 mm sample holders – 50 nm thick Silicon Nitride film – (1) 500 x 500 […] Show less (-)
	Silicon Nitride 50 nm thick TEM Windows ( 9 Windows) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS… Show more (+) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS DESCRIPTION Silicon Nitride 100 micron thick frame 50nm film Nine Windows (8) 100×100 micron (1) 100×350 micron Improved Grid Shape We have re-engineered our TEM grids so that they are easier to handle. By making the grids slightly narrower […] Show less (-)
	Silicon Nitride 50 nm thick TEM Windows ( Single 100 micron Window) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS… Show more (+) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS DESCRIPTION Silicon Nitride (SiN) TEM Windows Low-Stress Silicon Nitride – 100 micron thick frame, fits 3 mm sample holders – 50 nm thick Silicon Nitride film – Dimensions: (1) 100 x 100 micron square – Non-Porous Improved Grid Shape […] Show less (-)
	Silicon Nitride 50 nm thick TEM Windows ( Single 1000 micron Window) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS… Show more (+) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS DESCRIPTION Silicon Nitride (SiN) TEM Windows Low-Stress Silicon Nitride – 100 micron thick frame, fits 3 mm sample holders – 50 nm thick Silicon Nitride film – Dimensions: (1) 1000 x 1000 micron square – Non-Porous 100% Satisfaction Guaranteed […] Show less (-)
	Silicon Nitride 50 nm thick TEM Windows ( Single 500 micron Window) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS… Show more (+) SILICON NITRIDE TEM WINDOW GRIDS 5 nm, 10 nm, 20 nm, 50 nm, and MICROPOROUS DESCRIPTION Silicon Nitride (SiN) TEM Windows Low-Stress Silicon Nitride – 100 micron thick frame, fits 3 mm sample holders – 50 nm thick Silicon Nitride film – Dimensions: (1) 500 x 500 micron square – Non-Porous Improved Grid Shape […] Show less (-)

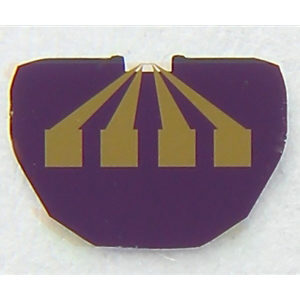

	Silicon Nitride Lift-Out TEM Windows with gold contacts DESCRIPTION Silicon Nitride (SiN) Half-Grids For Lift-Out Applications 100 micron thick frame, fits… Show more (+) DESCRIPTION Silicon Nitride (SiN) Half-Grids For Lift-Out Applications 100 micron thick frame, fits flip-stage SEM/FIB and standard TEM sample holders – 400 nm thick low-stress Silicon Nitride film – (1) 100 x 500 micron window with the free-edge along length – 200 nm thick gold contacts for in situ sample electrical biasing What’s […] Show less (-)
