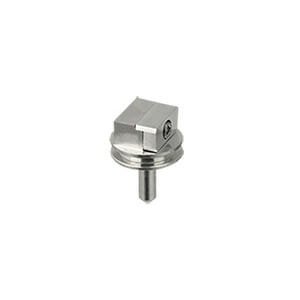

EM-Tec F12 compact FIB grid holder for up to 2 FIB grids, pin

Description

The EM-Tec stub based SEM sample holders are all small SEM sample holders based on (modified) SEM sample stubs. They have the same footprint as the original SEM sample stubs and are directly compatible with the SEM stage or SEM sample stub holder. These affordable sample holders increase efficiency and reduce sample preparation time. Using sample holders reduces the use of conductive adhesives which can be a source of contamination. The EM-Tec stub based small sample holders formats are:
– Standard pin stub based compact sample holders
– JEOL cylinder stub based sample holders
– Hitachi M4 stub based sample holders
The pin stub based sample holders comprise the largest selection; they can be easily used on other SEM platforms by using the cost efficient EM-Tec SEM stub adapters. All EM-Tec compact SEM stub based SEM sample holders are precision machined from vacuum grade aluminium unless otherwise noted. Provided with set screws and allen keys.

EM-Tec pin stub based compact sample holders
There is a wide choice of the compact EM-Tec pin stub based sample holders. Since they are small and using the standard pin stub format, they will fit in virtually any SEM compatible with standard pin stubs. They are based on standard pin stubs or made from modified pin stubs with a pin size of Ø3.15mm and a pin length of 9.5mm. Ideal for table top SEMs such as the Phenom but just as useful on laboratory grade SEMs and FESEMs. Using a sample holders is quicker, cleaner and provides more stability than conductive tapes or glues.
