Gold Coated Substrates

Options disponibles :

Vignette SKU Description Unit Quantité

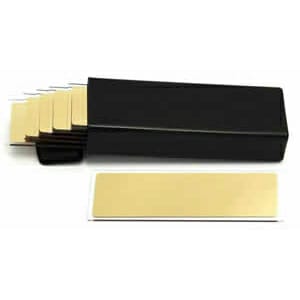

D71892-05 D71892-05

Gold Coated Microscope Slide
25 x 75 x 1 (mm)

each

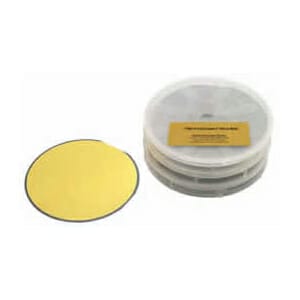

D71892-10 D71892-10

Gold Coated 4″ Silicon Wafer, P-Type
100 mm dia.,
0.525 mm th.

each

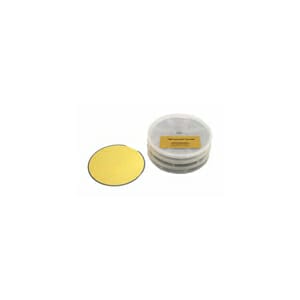

D71892-15 D71892-15

Gold Coated 2″ Silicon Wafer, P-Type
50 mm dia.,
0.279 mm th.

each

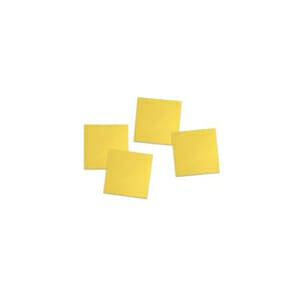

D71892-20 D71892-20

Gold Coated Square Coverslips
22 x 22 x 0.2 (mm)

2/pk

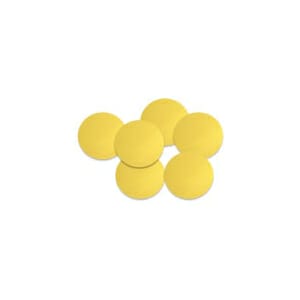

D71892-25 D71892-25

Gold Coated Round Coverslips
16 mm dia., 0.15 mm

2/pk

Description

We offer a variety of economically priced gold coated substrates. All coatings are deposited under vacuum using electron beam evaporation. These high quality substrates are coated with 500 Å (50 nm) of gold, with a thin chromium adhesion layer (2-7 nm) between the glass and gold coating. This adhesion layer can also be replaced with titanium upon request. All substrates are pre-cleaned using an ion source for quality assurance. Glass slides are packed in a dedicated cleanroom environment and shipped in slide mailers. All coverslips are packed in a dedicated cleanroom environment and shipped in a X0 Gel-Pak box. All gold substrates are autoclavable.

Applications
– Optics
– Nanotechnology
– Biotechnology
– AFM applications

Spécifications

Microscope Slides Silicon Wafers Coverslips
Type: Soda lime glass P/Boron Borosilicate glass
Density: 2.48 g/cm3 ——- 2.51 g/cm3
Refractive Index (λ=546.1 nm): 1.517 ——- 1.525
Coating Gold, Au Gold, Au Gold, Au
Coating Purity: 99.999% 99.999% 99.999%
Deposition Technique: Electron Beam Electron Beam Electron Beam
Deposition Rate: 1-2 Å/sec 1-2 Å/sec 1-2 Å/sec
Vapor Pressure: 10-6 Torr 10-6 Torr 10-6 Torr
Orientation: ——- <100> ——-
Resistivity: ——- 1-50 ohm-cm ——-
Front Surface: ——- Polished ——-
Back Surface: ——- Etched ——-
