Description
A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny
side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300.

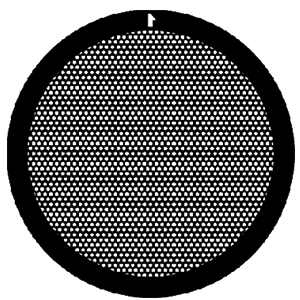

Standard Hexagonal Mesh
3.05mm diameter, 0.7 mil (18µm) thickness
Material: Copper (Cu), Nickel (Ni), Gold (Au)
| Mesh | Cat# | Packed | Pitch (µm) | Hole (µm) | Bar (µm) |
| 50 mesh | DG50H-Cu | 100/vial | 500 | 430 | 70 |
| DG50H-Ni | 100/vial | 500 | 430 | 70 | |
| DG50H-Au | 50/vial | 500 | 430 | 70 | |
| 75 mesh | DG75H-Cu | 100/vial | 340 | 290 | 50 |
| DG75H-Ni | 100/vial | 340 | 290 | 50 | |
| DG75H-Au | 50/vial | 340 | 290 | 50 | |
| 100 mesh | DG100H-Cu | 100/vial | 250 | 215 | 35 |
| DG100H-Ni | 100/vial | 250 | 215 | 35 | |
| DG100H-Au | 50/vial | 250 | 205 | 45 | |
| 200 mesh | DG200H-Cu | 100/vial | 125 | 100 | 25 |
| DG200H-Ni | 100/vial | 125 | 100 | 25 | |
| DG200H-Au | 50/vial | 125 | 100 | 25 | |
300 mesh |
DG300H-Cu | 100/vial | 83 | 58 | 25 |
| DG300H-Ni | 100/vial | 83 | 58 | 25 | |
| DG300H-Au | 50/vial | 83 | 58 | 25 | |
| 400 mesh | DG400H-Cu | 100/vial | 62 | 37 | 25 |
| DG400H-Ni | 100/vial | 62 | 37 | 25 | |
| DG400H-Au | 50/vial | 62 | 37 | 25 |
La liste est non exhaustive.
N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.
