Optical Fiber Cleaving Tools

Description

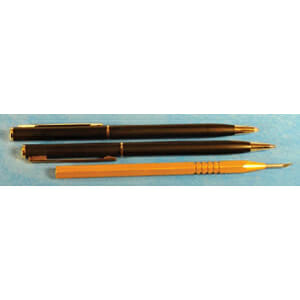

These precision hand held tools can be used for scoring and cleaving all types of optical fibers. 1. Carbide Cleaver Tool Made from a solid carbide rod. It has two angled sides which intersects into a very sharp cutting edge of about 4mm (0.160″) in length. The third angle is lapped on the very tip to prevent breakage. The carbide shank is mounted into a non-rolling hexagon shaped anodized aluminum holder.The carbide part is 2.0 mm dia x 10.0 mm long. Overall: 120 mm long 2. Retractable Diamond Cleaver Tool A ground and polished natural diamond which has a v90 degree included angle with a relief angle of 30 degrees. The cleaver is retained in a quality metal pen like casing with a pocket clasp. The diamond part is 1.5 mm wide x 3.0 mm long. The overall length is 133 mm. 3. Retractable Sapphire Cleaver Tool Ground and polished natural sapphire wedge with a 60 degree included angle. The cleaver is retained in a quality metal pen like casing with pocket clasp. The sapphire part is 2.0 mm wide x 3.0 mm long. The overall length is 133 mm
