Switch Box Kit

Description

How does this work?

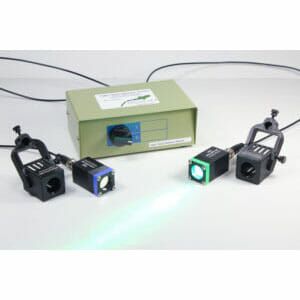

The switch box kit consists of:
– BNC Switch box
– Three BNC cables
– Two Light Head Hangers
One BNC cable connects the SFA gooseneck lamp base to the input connector on the rear of the Switch Box. The other two cables connect the Switch Box outputs to the two light heads. Use the selector switch on the front of the Switch Box to select between the two light heads. The Light Head Hangers mount your light heads on the SFA adapter ring on the microscope.

SFA Switch Box front, showing selector switch	SFA Switch Box rear, showing input and output connectors
SFA Switch Box Kit, position A, RB selected	SFA Switch Box Kit, position B, GR selected

(Note – Light heads not included with kit. Any of the BNC light heads can be used with the kit.)
The Light Head Hangers mount to the end of any of the thumbscrews on the SFA adapter ring. They are available in long and short pivot arm versions for use with long and short working distance microscopes.
– Long working distance (LWD) – 6.3 cm (2.5 in.) and greater
– Short working distance (SWD) – 6.3 – 4.6 cm. (2.5 – 1.8 in.)
Note that the Switch Box Kit is available only for SFA systems that use the BNC light head connector, and not the older V1 connector.

What is the benefit?

This accessory simplifies the process of switching between excitation wavelengths. You can have two different excitation sources mounted simultaneously and select between them with the flip of the selector switch. You will still need to manually change the barrier filter, but the overall switching process is speeded up and simplified.
