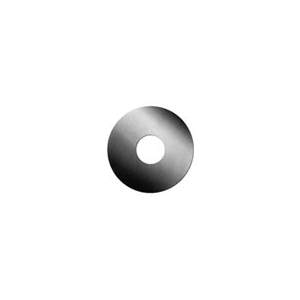

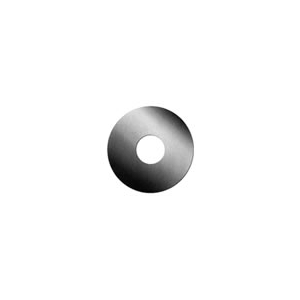

TEM Specimen Supports in Molybdenum – single hole

Description

We have extended our range of TEM grid materials to include four types, which are now available in Molybdenum. The new products are manufactured using a process known as chemical “milling” (etching) instead of the more familiar technique of “electroforming” (deposition) that is used in the manufacture of copper, nickel and gold products. Molybdenum is used principally in applications where it’s high temperature, hardness, expansion of coefficient and corrosion resistance characteristics are considered important. The material which is used has a purity of 99.9%.

	DG200-Mo	DG100-Mo	DG2010-Mo	DG1000-Mo
	200 mesh	100 mesh	2×1 grid	1000 micron grid
Overall Diameter	3.05mm	3.03mm	3.05mm	3.05mm
Rim Width	0.225mm	0.225mm	N/A	N/A
Rim Mark	yes	yes	N/A	N/A
Center Mark	yes	yes	N/A	N/A
Lines/inch	200	100	N/A	N/A
Pitch	125µm	250µm	N/A	N/A
Bar Width	35µm	45µm	N/A	N/A
Hole Width	90µm	205µm	2x1mm	1000µm
Overall thickness	25µm	25µm	50µm	50µm
	53.00	60.50	52.00	61.50
	25/vial	25/vial	25/vial	25/vial

N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit.
