Description
A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny
side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300.
3.05 diameter, 0.8 mil thickness
Material: Copper(Cu), Nickel(Ni), Gold(Au)

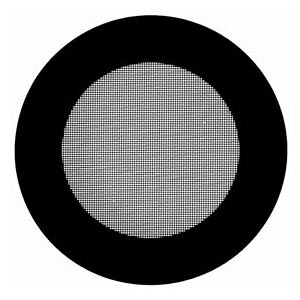

Thin Bar Grids have been developed using a new technology to produce ultra-fine grids with thinner cross bars than regular grids. The result is equally firm specimen support, but with 40% more open area for viewing maximum specimen surface area.
| Mesh | Cat# | Packed | Pitch (µm) | Hole (µm) | Bar (µm) |
| 200 | DT200-Cu | 100/vial | 125 | 113 | 12 |
| DT200-Ni | 100/vial | 125 | 113 | 12 | |
| DT200-Au | 25/vial | 125 | 113 | 12 | |
| 300 | DT300-Cu | 100/vial | 83 | 73 | 10 |
| DT300-Ni | 100/vial | 83 | 73 | 10 | |
| DT300-Au | 25/vial | 83 | 73 | 10 | |
| 400 | DT400-Cu | 100/vial | 62 | 54 | 8 |
| DT400-Ni | 100/vial | 62 | 54 | 8 | |
| DT400-Au | 25/vial | 62 | 54 | 8 | |
| 1000 | DT1000-Cu | 25/vial | 25 | 19 | 6 |
| DT1000-Ni | 25/vial | 25 | 19 | 6 | |
| Variable Mesh | TVM-Cu | 100/vial | Combined : 150, 200, 300, 400 mesh
Same as above |
||
| TVM-Ni | 100/vial | ||||
